RFID Security Seals

RFID Two-State Electronic Cable Seals UHF Chip Security Seals ZC-22H

Product NO: ZC-22H
Color: Yellow, Blue, Red, Green
Material: ABS++ Steel Lock + Galvanized Steel Wire
Application: Used in Containers - Trailers – Wagons – Railroad Cars – Cargo - truck – vans – doors – airline – duty-free shops – supermarkets – storage-controlling.
Product description: With a unique and programmable UHF chip embedded, RFID cable seals can be used for identifications, anti-counterfeiting, and interactive purposes.
INQUIRY

RFID Two-state Electronic Cable Seals

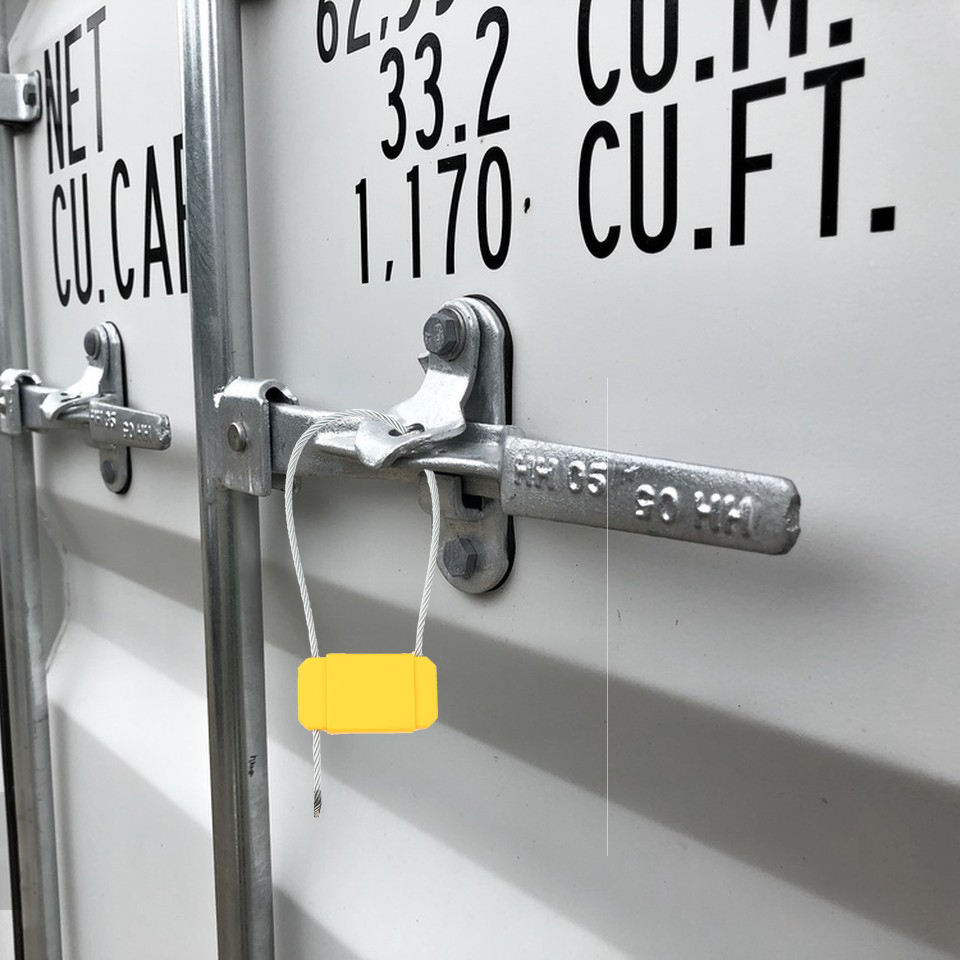

It designed for container transport, truck trailers, rail freight, and customs-controlled cargo, warehouse management.

Compared with standard cable seals, this RFID cable seal with a unique and programmable UHF chip embedded, when it is locked, the data read is one state; when it has been tampered with, the data read is another state. This enables asset owners to know whether unauthorized access has occurred, thereby improving security.

These seals support serial numbers, barcodes, and logo printing for shipment tracking and identification, commonly used as numbered Plastic Security Seals in modern logistics systems.

Technical Data:

Product model: ZC-26H
Materials: ABS plastic, aviation steel wire rope, A3 carbon steel
Steel wire length: 300mm, 500mm, 1.2m (length can be customized)
Steel wire diameter: 5mm

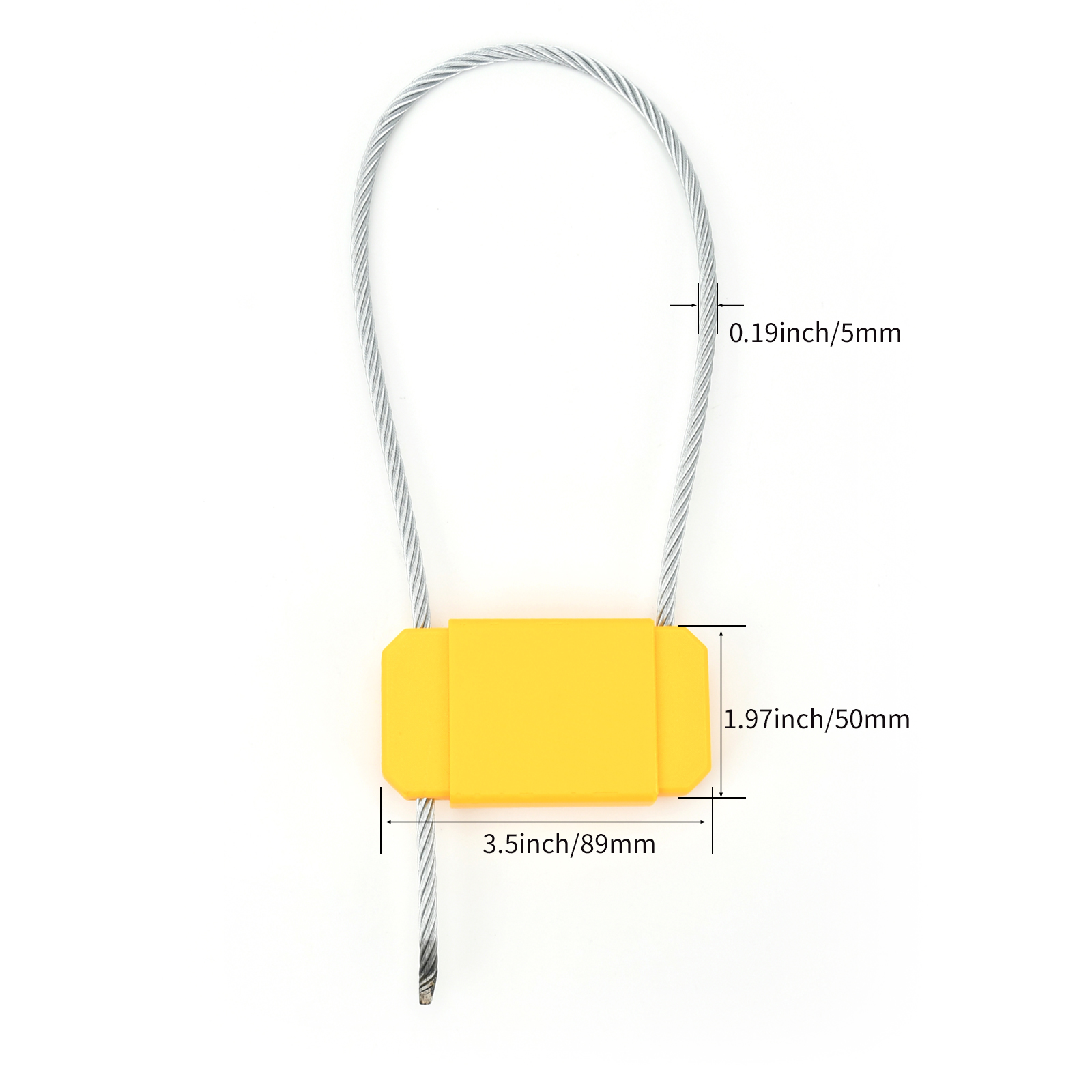

Lock body size:89 x 50 x 23mm
Product weight: ≈ 136g
Chip model: KX2005X
Operating frequency: 860MHz~960MHz
E P C: 96 bits expandable to 240 bits
T I D: 96 bits expandable to 192 bits
User: 1312bits
Reserved: 64bits
Anti static: up to 2000V
Communication Protocol: EPC Gen (V1.2.0) IS0/IEC 18000-6C
Reading and writing distance: : about 2-6m (depending on the configuration of the reader/writer device)
Read and write frequency: greater than 100000 times
Data retention time: greater than 10 years
Working temperature: -40° C~85°C
Status display: Locked/Unlocked
Customized identification: Customizable colors, laser, printing, hot stamping
tan be used to customize identification, barcodes, QR codes, pattemns, etc
Standard packaging: 10 pieces/box, 100 pieces/box

Application: Used in Containers - Trailers – Wagons – Railroad Cars – Cargo - truck – vans – doors – airline – duty-free shops – supermarkets – storage-controlling, logistics tracking, supply chain management, inventory control, security sealing.

FAQ

Q1: What types of logistics operations are high security cable seals commonly used for?

A: High security cable seals are widely used in container shipping, truck trailers, rail freight, customs-controlled cargo, and cross-border logistics operations. They are commonly applied as security seals for containers and shipping container seals where stronger tamper protection is required.

Q2: Why are cable seals considered more secure than standard plastic seals?

A: Because steel cable seals provide higher tensile strength and stronger resistance against cutting or forced removal than plastic seals, making them suitable for high-value cargo transportation and customs-controlled shipments.

Q3: What advantages do adjustable cable seals provide in transportation management?

A: Adjustable cable seals can fit different locking points and cargo sizes, making them suitable for containers, tanker trucks, warehouse doors, and freight equipment. They are widely used as container cable seal solutions in logistics systems.

Q4: How do SL-10H ~ SL-20H cable seals help improve cargo traceability?

A: The seals support laser serial numbers, barcodes, QR codes, and logo customization, helping logistics companies manage shipment verification and tracking. They are also used as numbered plastic security seals for cargo identification.

Q5: Are SL-10H ~ SL-20H cable seals suitable for international shipping environments?

A: Yes, they are designed for sea freight, rail transport, road logistics, and export cargo systems where durability and anti-tamper performance are important. They are commonly used as truck seals and container seals.

Q6: Which industries commonly use high security cable seals?

A: They are widely used in shipping companies, ports, customs systems, freight forwarding, industrial transport, and warehouse logistics management. These industries commonly use high security cable seals and wire security seal products.
